This article explains how to add a Sim Racing Studio 2 Channel Extension or a ButtKicker Gamer 2 to your existing ShakeKit.

Adding a Sim Racing Studio 2 Channel Extension or a ButtKicker Gamer 2 to a Sim Racing Studio ShakeKit increases the number of channels from 4 up to 5 or 6. This allows the ShakeKit to focus on the subtle suspension, road and g-force effects while the SRS 2 Channel Extension or a ButtKicker Game 2 handles the engine and other effects.


Use the steps below to add a SRS 2 Channel Extension or ButtKicker Gamer 2 to a ShakeKit. The video below will show the installation process:


Hardware Setup
  1. Open the ShakeKit box.
  2. Connect the 3.5mm cable of your ButtKicker Gamer 2 to the ORANGE (Sub/Center) input on the ShakeKit. sound card.
    1. The ButtKicker Gamers 2 wire can utilize the round hole in the ShakeKit. If the hole does not exist, you can easily make one using a drill (watch for clearance inside of the ShakeKit).

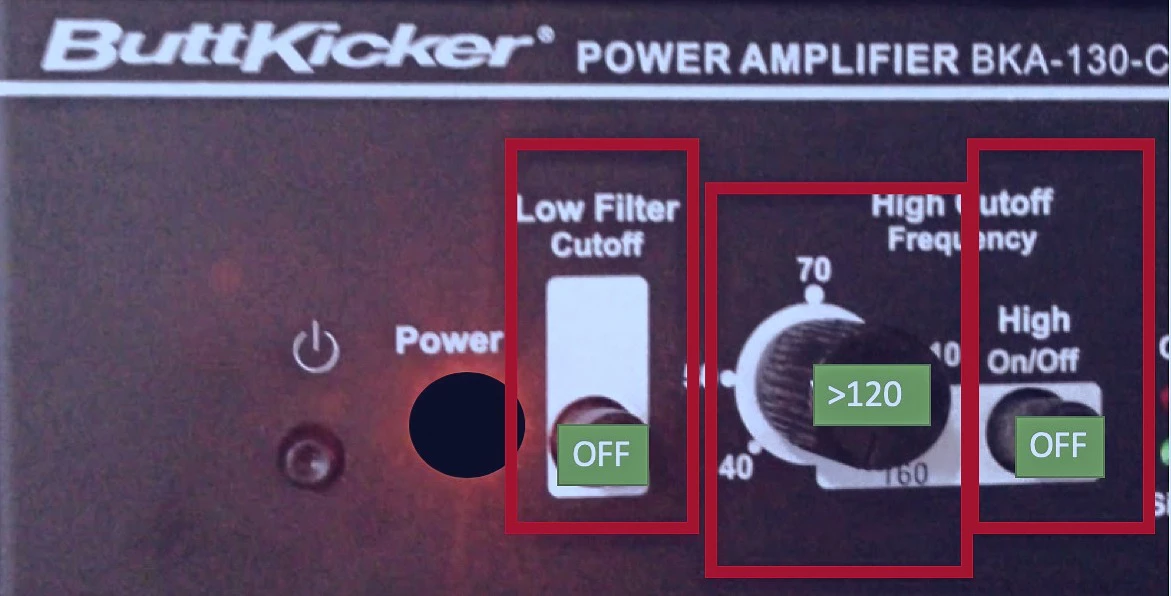

  3. Set the ButtKicker Gamer 2 amp like picture below (Low filter = OFF, High Cut Off Frequency = 120, High Filter = Off). Sim Racing Studio uses special low frequency sounds and different ButtKicker Game 2 amp settings could impact performance.


Software Setup
  1. Close Sim Racing Studio (Don't just minimize.)
  2. Open Windows Sound
  3. Select the Speakers (USB Sound Device)
  4. Select Configure in the lower left of the window
  5. In Speaker Setup, verify Audio channels is set to 5.1 Surround (Note: Try 7.1 Surround if you have issues with 5.1 Surround)

  6. Click the CENTER (C) Speaker icon. You should hear a melody, not a shake, coming out of the ButtKicker Gamer 2. If the CENTER (C) speaker does not make a sound from the ButtKicker Gamer 2 when pressed, checking cable connections and ensure the ButtKicker Gamer 2 amp is turned On.
  7. Set all speakers to Full-range speakers.
  8. Press Next and Finish
  9. Once back to the Sound window, select the Speakers (USB Sound Device) again and select Properties in the lower right.
  10. Select the Levels tab and set Speakers to 80% as a starting point. This can be increased later if the shaking effect is too weak.

  11. Select the Advanced tab at the top and set the Default Format to 16 bit, 48000 Hz (DVD Quality)
  12. Click OK when finished and close the Sound window


Sim Racing Studio Setup
  1. Open Sim Racing Studio
  2. Select SETUP and click on Hardware in the left toolbar
  3. Scroll down to the SHAKERS section
  4. In the Soundcard drop down menu, ensure Speakers (USB Sound Device) is selected.
  5. In the Profile drop down menu, set it to 6 Speakers - 5.1
  6. Press the Test button to activate the Buttkicker Gamer 2 shake effect
  7. Click Save in the upper right in the PROFILE IN USE box to save the changes.


The Sim Racing Studio 2 Channel Extension or ButtKicker Gamer 2 is now ready to use with the ShakeKit.


To adjust the effects used by the Sim Racing Studio 2 Channel Extension or a ButtKicker Gamer 2, follow the guidance in the Advanced Shaking Profiles article here.
